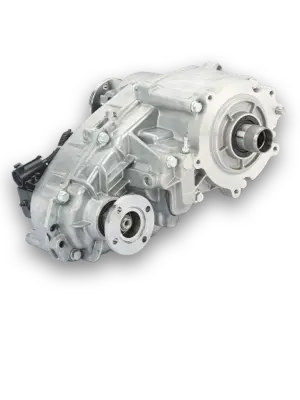

Ford F-150 Transfer Case Replacement Cost: $900-$1,800 Installed

Introduction

Your 4WD light is on, your truck refuses to engage 4WD, and the first repair quote you've received is higher than expected. Before you settle on that number, you should know what the job actually costs and how often the quoted part is not the part that actually failed.

On the F-150 specifically, the second point matters more than most people expect. A large share of the 4WD complaints on this platform trace back to a component that costs a fraction of the transfer case and bolts to the outside of it. This guide covers both — the real numbers, and the check that decides which set of numbers applies to you.

Costs of Replacing a Ford F-150 Transfer Case

The cost to replace a Ford F-150 transfer case is typically somewhere approximately in the range of $900 to $1,800, installed. The amount you pay fluctuates based on the year of the truck, the case unit, and if you opt for a used transfer case or buy one from the dealer as a new unit.

A new unit from a Ford dealer runs $2,000 - $3,500 for the part alone, which is where most quotes above $3,000 originate. Remanufactured sits between the two, usually with a core charge attached.

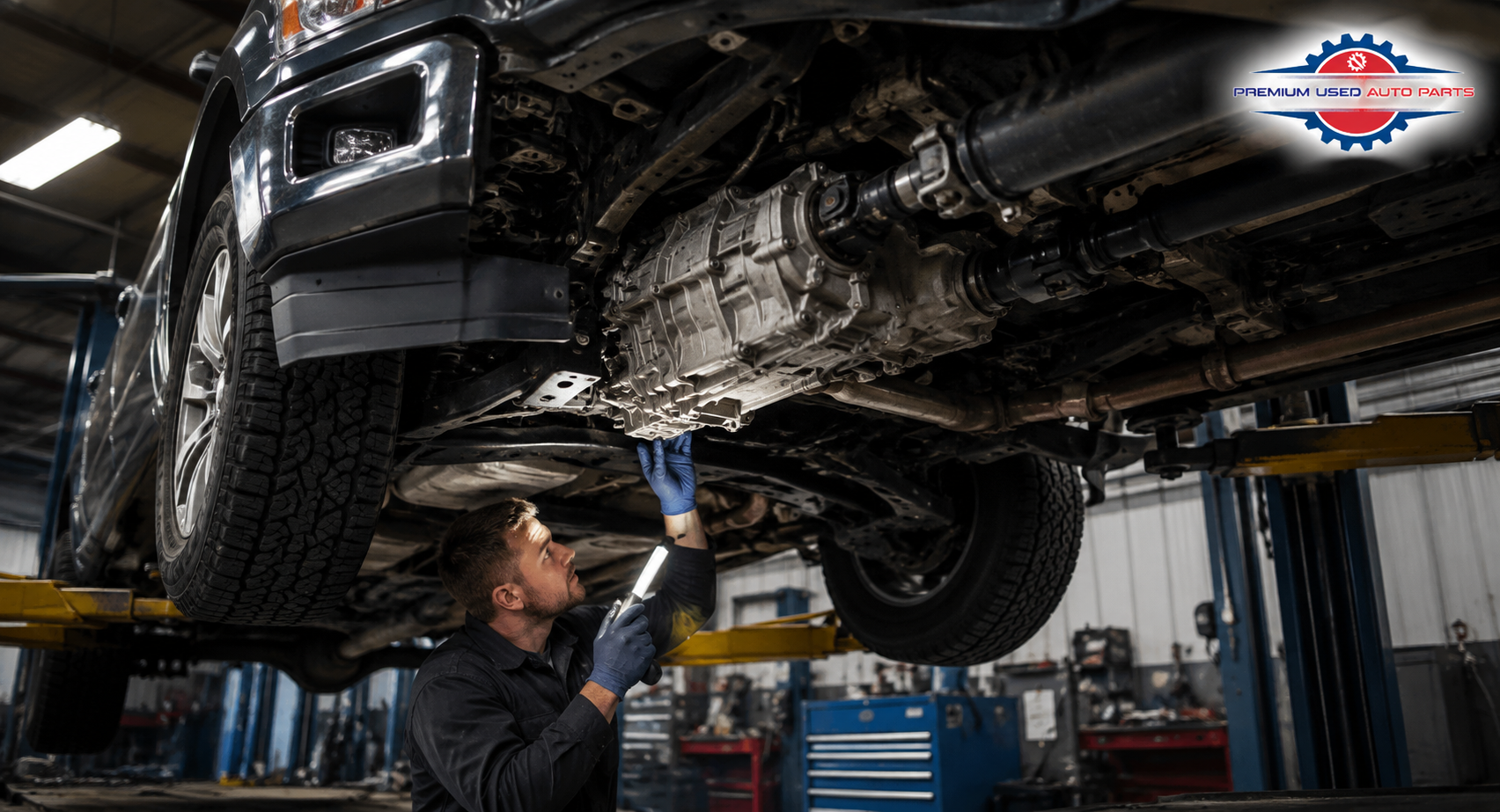

Labour on an F-150 is comparatively straightforward — the case is accessible from underneath and comes out with the driveshafts and crossmember. Independent shops generally quote three to five hours; dealership rates push the same job higher. Long-wheelbase SuperCrew models occasionally add time, and seized crossmember bolts will too.

Check the Shift Motor First

This is the check that saves people the most money, so it's worth doing before you order anything.

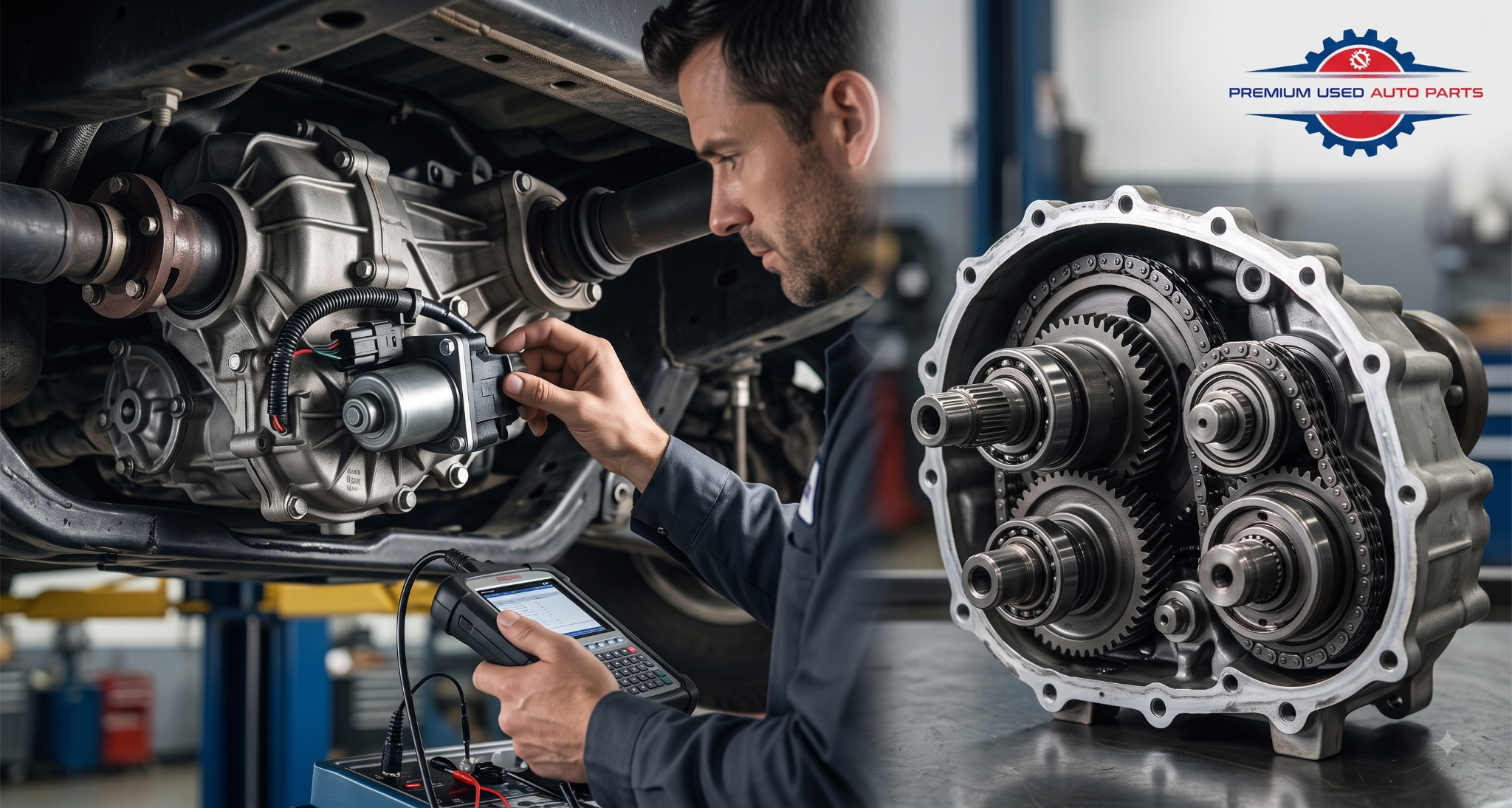

The external transfer case shift motor is mostly what is at fault for complaints on the F-150, Expedition and Navigator. It is external to the housing and moves an internal shift fork using a bolt. In this case, the 4WD light starts flashing and goes into a permanent flashing mode. The system will not change the operating mode, and in addition, you may hear a click and a whirr and not see anything happen. The common fault code is P1867, which is logged in the system for a transfer case contact plate or motor position sensor fault.

That motor costs $80-$400 rather than $400-$900, and it's a separate job. If the case itself were failing internally, you would normally hear it first — grinding, or a whine that rises with road speed and is often audible in 2WD as well as 4WD.

Two more things worth ruling out. The vacuum system that Ford includes on 2WD trucks is frequently seen complaining of a grinding sound, which is resolved on 4WD trucks. This system has been the subject of two TSBs (18-2273 and 20-2307). The noise one is used to hearing from a worn U-joint or Drive Shaft Carrier Bearing is very similar to a failing case, hence proper diagnosis is required before the order is placed.

Which Unit Does Your F-150 Take?

Fits are really particular on this platform, and getting the wrong fit is the most common service parts return reason.

Between 1997 and 2003, they used the BW4406. From 2004 onwards, the platform is BW4411 and BW4417 with ES0F, and from 2015 onwards, the Ford F-150 transfer cases were split into two versions which look the same but cannot be exchanged.

Your dash selector will identify which unit it is. A three mode ES0F which includes 2H, 4H, 4L and a four mode with a 4A position require two different units. Because the split depends on the transmission and factory option code in a serial way rather than by calendar year, a 17 digit VIN is the only reliable way to confirm the correct part.

A Cost-Effective Replacement Solution

If the case genuinely has failed, a tested used OEM unit is the cheapest route to a factory-correct part — the same component Ford originally fitted, at roughly a third of dealer pricing, with no core charge to return.

The variable that matters is testing. A yard price without spin-testing, VIN verification or warranty coverage isn't comparable to one that includes them.

Budget for two things alongside the unit. The shift motor usually doesn't ship attached, so if yours has failed as well, order both together. The case arrives drained for shipping requirements, so it needs to be filled to Ford's specification before the truck is driven — running it dry can turn a working replacement into a second repair.

Frequently Asked Questions

Conclusion

Budget $900-$1,800 for a Ford F-150 transfer case replacement with a tested OEM used unit, and expect a dealer quote to roughly double that. But spend the diagnostic time first: on this platform the external shift motor fails more often than the case, and the difference between the two is several hundred dollars and an afternoon of labour.

If it does turn out to be the case, get the unit code confirmed with your VIN before anything ships. The one-speed and two-speed split from 2015 catches out a lot of buyers, and ordering the wrong part means paying for shipping both ways before you've fixed anything.
